Sun sensor, location - GF83.57-P-2104-02I

Illustrated on model 220

The sun sensor (B32/2) is located in the center of the air inlet in the engine hood.

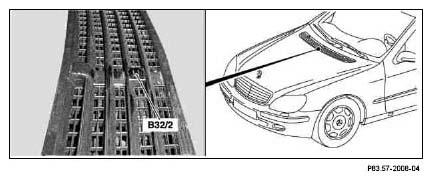

Fig 1: Identifying Sun Sensor Location
G04851455
