Refrigerant temperature sensor, location - GF83.40-P-2124-02I

Illustrated on model 220

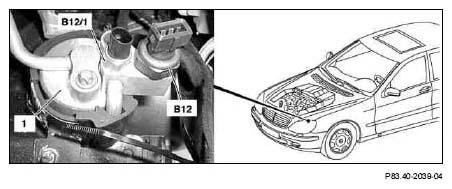

The refrigerant temperature sensor (B12/1) is located on the receiver/drier (1) in the engine compartment at the front left.

Fig 1: Identifying Receiver/Drier, Refrigerant Temperature And Pressure Sensor Location - Model 220
G04851408
