Receiver/drier, location - GF83.40-P-2122-02I

Illustrated on model 220

The receiver/drier (1) is located in the engine compartment at the front left.

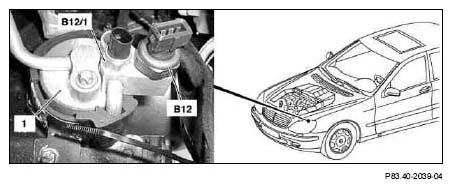

Fig 1: Identifying Receiver/Drier, Refrigerant Temperature And Pressure Sensor Location - Model 220
