Rear air conditioning housing, location - GF83.50-P-2102-01M

The rear A/C housing (1) is located below the armrest in the center console.

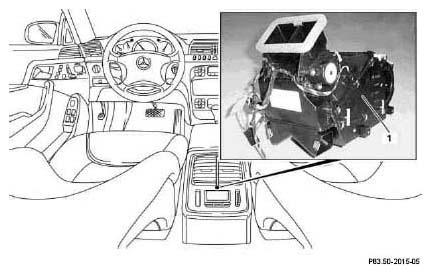

Fig 1: Identifying Rear Air Conditioning Housing Location

G04851420
