REST button, location - GF83.40-P-2109-02I

The REST button (RESIDUAL HEAT ) is located on the automatic A/C pushbutton control module (N22).

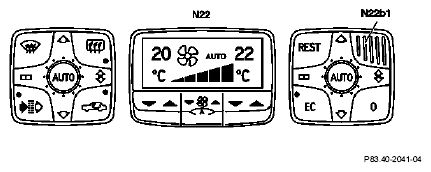

Fig 1: Identifying Automatic A/C Pushbutton Control Module And In-Car Temperature Sensor
G04851398
