Outdoor temperature sensor, location - GF83.57-P-2103-02I

Illustrated on model 220

The outdoor temperature sensor (B14) is located in the bumper in the front left.

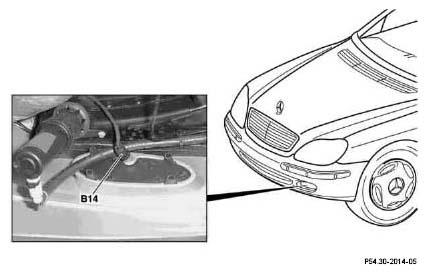

Fig 1: Identifying Outside Air Temperature Sensor
G04851454
