Heater core, location - GF83.20-P-2101-02M

The heater core (1) is located in the rear A/C housing below the armrest of the center console.

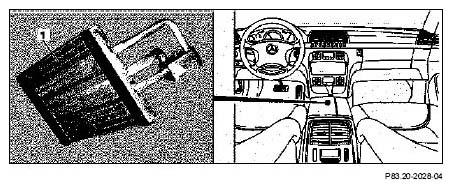

Fig 1: Identifying Heater Core Location In Rear A/C Housing

G04851359
