Climate Control -- Basic Knowledge -- 215 & 220 Chassis
>>
Basic Knowledge
>>
Heater core, function - GF83.20-P-2101
>>
Heater core, location - GF83.20-P-2101-02I
Heater core, location - GF83.20-P-2101-02I

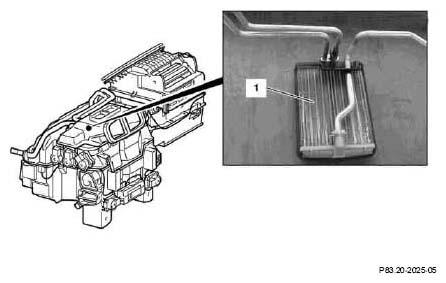

The heater core (1) is located behind the instrument panel in the A/C housing.
Fig 1: Identifying Heater Core Location Behind Instrument Panel
