Heat exchanger temperature sensor, location - GF83.57-P-2101-02I

Illustrated on model 220

The left heat exchanger temperature sensor (B10/2) and right heat exchanger temperature sensor (B10/3) are located on the A/C housing (1).

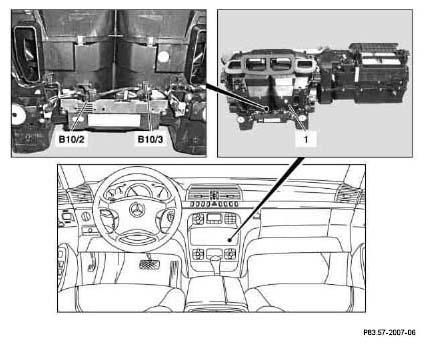

Fig 1: Identifying Heat Exchanger Temperature Sensor And A/C Housing
G04851450
