Front footwell air outlet, location - GF83.10-P-2109-02I

Illustrated on model 220

The front footwell air outlet (1) is located at the bottom of the instrument panel.

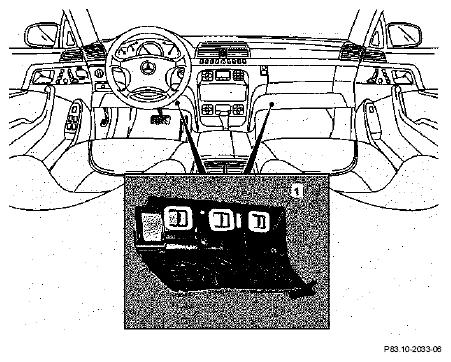

Fig 1: Identifying Front Footwell Air Outlet Location - Model 220
G04851332
