EC button, location - GF83.40-P-2103-02I

The EC button (AIR CONDITIONING OFF ) is in the automatic air conditioning pushbutton control module (N22).

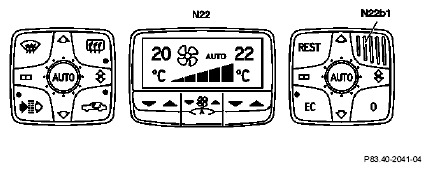

Fig 1: Identifying Automatic A/C Pushbutton Control Module And In-Car Temperature Sensor
G04851387
