Display, location - GF83.40-P-2114-02I

The display is located on the automatic A/C pushbutton control module (N22).

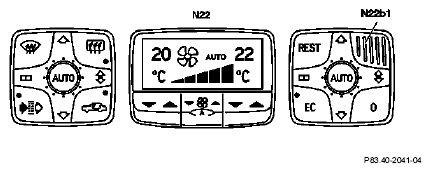

Fig 1: Identifying Automatic A/C Pushbutton Control Module And In-Car Temperature Sensor
G04851400
