Coolant circulation pump, location - GF83.20-P-2102-02M

The coolant circulation pump of the rear air conditioning (A31/1m1) is located in the right rear wheelhouse.

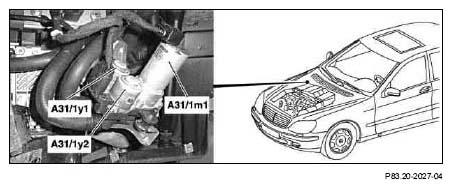

Fig 1: Identifying Duo Valve And Coolant Circulation Pump Location
G04851361
