Blower, location - GF83.10-P-2102-01M

The rear blower (M2/1) is located behind the rear A/C housing below the center console.

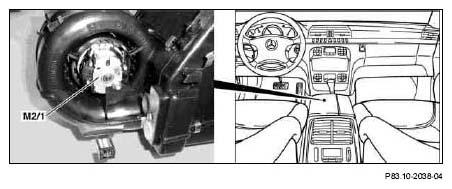

Fig 1: Identifying Rear Blower (M2/1) Location

G04851319
