Blower regulator, location - GF83.10-P-2103-02M

The blower regulator (N29/2) is located at the front on the rear air conditioning housing and is attached to the blower.

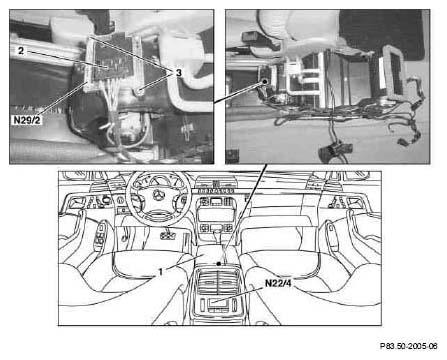

Fig 1: Identifying Blower Regulator (N29/2) Location
G04851321
