Blower regulator, location - GF83.10-P-2103-02I

Illustrated on model 220

The blower regulator (A32n1) is located beneath the glove compartment behind the cover (2) for the A/C housing and is attached to the blower.

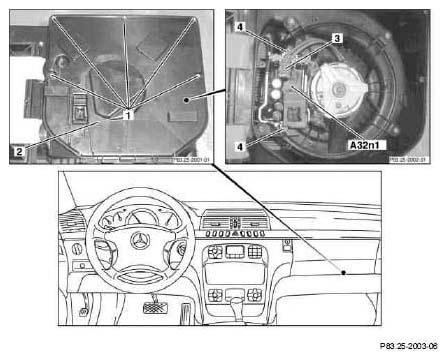

Fig 1: Identifying Blower Regulator (A32n1) Location - Model 220
G04851320
