Blower button, location - GF83.40-P-2100-02I

The blower button (LOWER TEMPERATUREBLOWER BUTTONRAISE TEMPERATURE ) is located on the AAC pushbutton control module (N22).

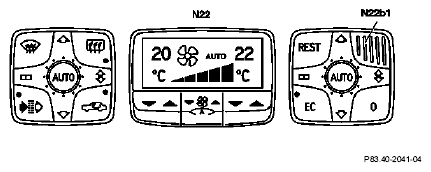

Fig 1: Identifying Automatic A/C Pushbutton Control Module And In-Car Temperature Sensor
G04851385
