Air ducts, location/purpose/design - GF83.10-P-2139I

MODEL 220

Design

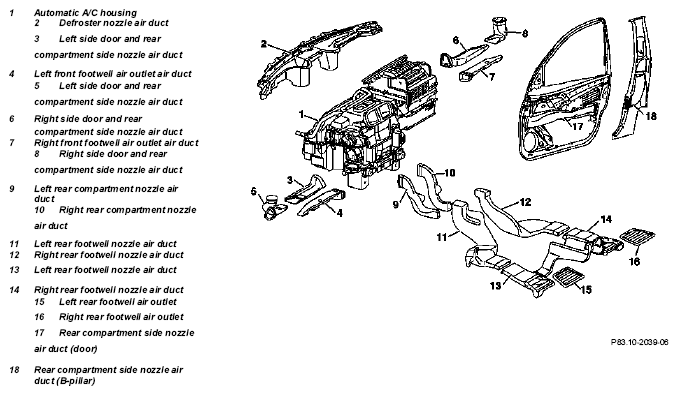

Fig 1: Identifying Air Ducts Components
G04851351
  Air ducts, location   GF83.10-P-2101-01I
  Air ducts, purpose The air ducts guide the air required for ventilation of the vehicle from the A/C housing and rear A/C housing to the air outlet in the vehicle passenger compartment.
