Air distribution switch, location - GF83.25-P-2101-02I

The air distribution switch is combined with the (AUTO BUTTON ) button and is located on the automatic A/C pushbutton control module (N22).

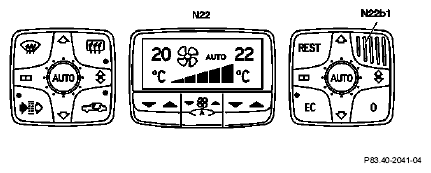

Fig 1: Identifying Automatic A/C Pushbutton Control Module And In-Car Temperature Sensor
G04851365
