Retrofitting refrigerator in rear armrest - AN86.61-P-0001M

MODEL 220

The refrigerator is equipped with a low voltage cut-off switch allowing it to be operated when the vehicle is parked without discharging the battery.

When retrofitting it is necessary to install the 78-liter fuel tank with  through-loading possibility instead of the standard fuel tank.

(Eliminated on vehicles with code 282 (ski bag in rear center armrest)).

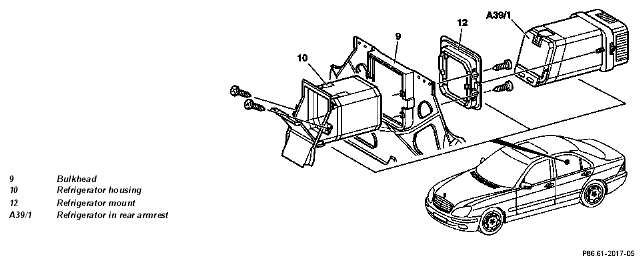

Fig 1: Identifying Refrigerator Components In Rear Armrest (1 Of 2)

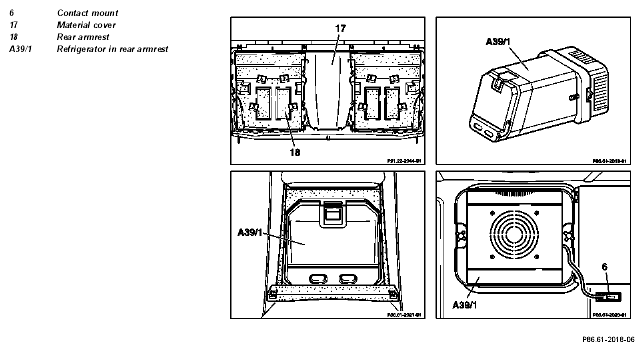

Fig 2: Identifying Refrigerator Components In Rear Armrest (2 Of 2)

	Fuel presents an explosion hazard  and is toxic  when inhaled or absorbed. Contact with fuel can cause skin and eye injury	Fire, open lights and smoking prohibited. Fill and store fuel only in containers intended for this purpose and marked accordingly. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Notes on refrigerator in rear armrest	Model 220	AH86.61-P-0001-01A
	Removal
1	Disconnect ground lead on battery
			AR54.10-P-0003I
2.1	Completely remove rear seat
			AR91.12-P-1620MA
2.2	Completely remove right rear bucket seat
			AR91.12-P-1620M
3.1	Remove material cover (17) from rear armrest (18)	Except on vehicles with code 282 Ski bag (through-loading possibility)
3.2	Remove center rear seat armrest	Except on vehicles with code 282 Ski bag (through-loading possibility) Part eliminated
		Only on vehicles with bucket seats	AR91.12-P-1620M
4	Remove control module mount below right rear seat
5	Remove insulating mat in rear	Except on vehicles with code 282 Ski bag (through-loading possibility)
6	Remove ski bag (or refrigerator mount (12)	Except on vehicles with code 282 Ski bag (through-loading possibility)
7	Remove trunk paneling	The rear wall paneling and floor covering is eliminated except on vehicles with code 282 ski bag (through-loading possibility)
			AR68.30-P-4600M
8	Remove fuel tank	Except on vehicles with code 282 Ski bag (through-loading possibility)
			AR47.10-P-4100IA
	Installation
9	Install fuel tank	Except on vehicles with code 282 Ski bag (through-loading possibility)
			AR47.10-P-4100I
10	Reroute refrigerator wiring harness and connect		AZ86.61-P-0001-01M
11	Retrofit refrigerator housing	Except on vehicles with code 282 Ski bag (through-loading possibility) Interchangeable with ski bag housing	AN91.22-P-0001-03M
12	Install trunk paneling	Floor covering is a new part except on vehicles with code 282 Ski bag (through-loading possibility)
			AR68.30-P-4600M
13	Complete vehicle
14.1	Remove ski bag from rear armrest and lay in trunk (part remains with customer)	Except on vehicles with code 282 Ski bag (through-loading possibility) See Owner's Manual
15	Insert refrigerator (A39/1) into refrigerator housing (10) and connect connection lead to connector mount (6)
16	Fill fuel tank	Except on vehicles with code 282 Ski bag (through-loading possibility)
			AR47.10-P-4001B
	Checking
17	Perform version coding for tank version	Except on vehicles with code 282 Ski bag (through-loading possibility) See STAR diagnosis
18	Check for proper function	See Owner's Manual
