Removal |
|
|
| 1 |
Move driver's seat toward front |
|
|
| 2 |

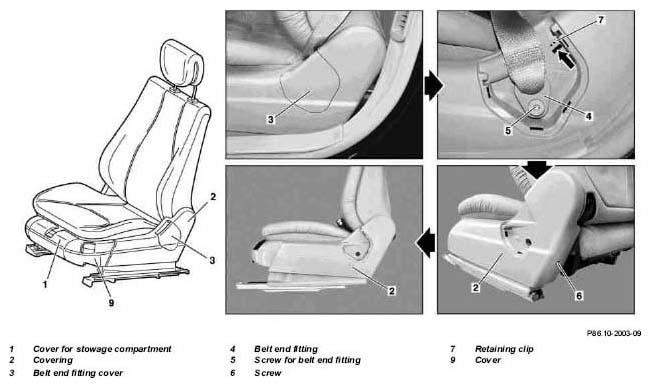

Remove cover (3) from belt end fitting (4). |
|
|
| 3 |
Unscrew screw (5) from belt end fitting (4) |
 Installation:
When screwing on ensure that the belt end fitting (4) can still pivot. |
|
| |
|
 |
*BA91.40-P-1001-01A |
| 4 |
Loosen screw (4), press retaining clip (7) in direction of arrow with screwdriver and remove paneling (2). |
Do not unscrew screw (6) completely. |
|
| 5 |
Move driver's seat toward rear and upward |
|
|
| 6 |

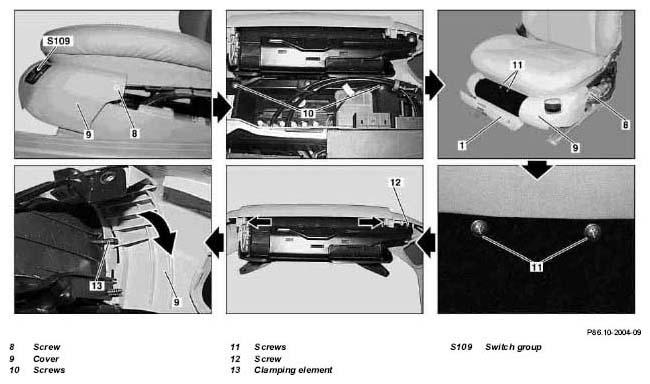

Remove switch group (S109) from driver's seat |
|
|
 |
|
with front seat with multi-contour backrest |
AR91.25-P-1760M |
|
|
with front seat with lumbar support |
AR91.25-P-1440M |
| 7 |
Unscrew screw (8) and fold cover for stowage compartment (1) toward front |
|
|
| 8 |
Unscrew screws (10) below seat and screws (11) in stowage compartment. |
|
|
| 9 |
Completely remove stowage compartment (9) with cover |
|
|
| 10 |
Unscrew screw (12) and press stowage compartment cover (1) out at pivot points (arrows) |
|
|
| 11 |
Turn cover (9) in direction of arrow and remove stowage compartment |
Do not break off clamping element (13). |
|
 |
Installation |
|
|
| 12 |

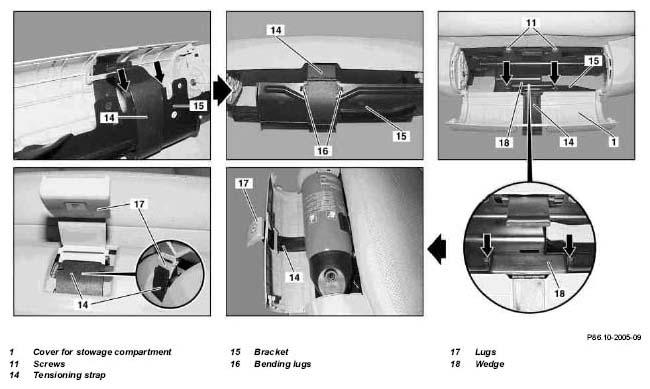

Insert tensioning strap (14) through stowage compartment cover and fasten to cover (9) |
|
|
| 13 |
Press tensioning strap (14) into carrier module for fire extinguisher (15) (arrows) and fasten in tensioned state with bending lugs |
|
|
| 14 |
Install in opposite order |
Steps 1 to 8 |
|
| 15 |
Clip wedge (18) into carrier module for fire extinguisher (15) (see arrows) |
|
|
| 16 |
Clip lug (17) into tensioning strap (14) and close stowage compartment |
Install fire extinguisher with handle pointing downward. |
|
| 17 |
When the scope of equipment is changed enter code or designation for corresponding special equipment in vehicle data card |
|
|
