Remove, install poly-V-belt for compressor - AR13.21-P-1202RVK: Notes
ENGINE 113.992 in MODEL 230.474
ENGINE 113.990 in MODEL 211.076 /276
ENGINE 113.991 in MODEL 215.374, 220.074 /174
ENGINE 113.995 in MODEL 230.472
Shown on engine 113.992
| Remove | |||
|---|---|---|---|
| Risk of death caused by being drawn into rotating vehicle parts | Do not insert your hand into rotating parts. Wear closed and snug-fitting work clothes. Secure area of rotating vehicle components against unauthorized access. |
AS00.00-Z-0004-01A | |
| Risk of injury caused by moving parts that can pinch, crush or , in extreme cases even sever extremities. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0009-01A | |

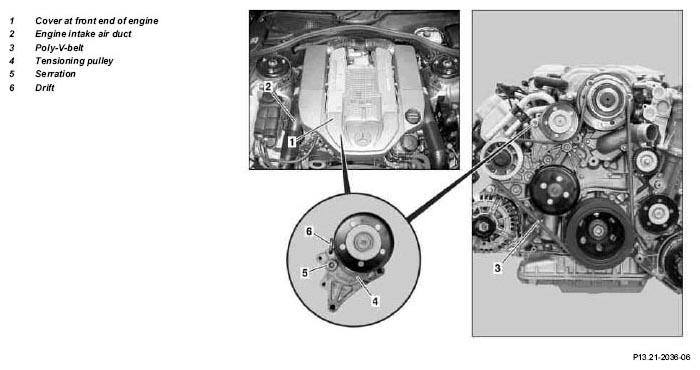

| 1.1 | Remove cover on engine front face (1) | Model 211 | |
| 2.1 | Remove engine intake air duct (2) | Model 211 | |
| 3.1 | Mark running direction of poly-V-belt (3). | In case of reusability. | |
| 4 | Slacken poly-V-belt (3) for compressor and take off | ||
| Checking | |||
| 5 | Inspect belt pulley sections and tensioning device for damage and dirt | ||
| 6 | Inspect poly-V-belt (3) of compressor | ||
| Check poly-V-belt in visible area for wear | AP13.22-P-1352Z | ||
| Install | |||
| 7 | Fit on poly-V-belt (3) of compressor and tension | ||
| Running diagram of compressor poly-V-belt | AR13.21-P-1202-01RVK | ||
| 8.1 | Install engine intake air duct (2) | Model 211 | |
| 9.1 | Install cover on engine front face (1) | Model 211 | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 10 | Crank engine and check belt run |
