Retrofit remote trunk lid closing - AN88.50-P-0002N

MODEL 215.375 /378 as of 1.6.00 up to 31.8.02

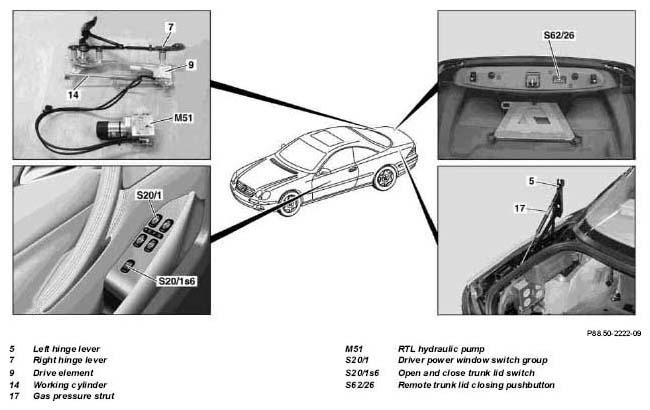

Fig 1: Identifying Remote Trunk Lid Associated Components (1 Of 2)

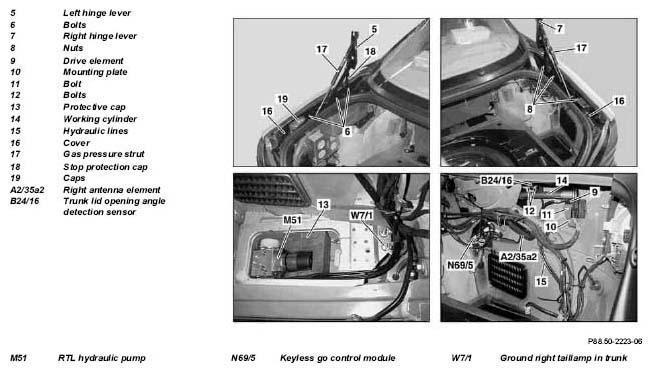

Fig 2: Identifying Remote Trunk Lid Associated Components (2 Of 2)

	Remove
1	Remove battery
			AR54.10-P-0005I
2	Remove trunk lid	Except 2 to 11. Separate electric and pneumatic connection on retractor and remove retractor.
			AR88.50-P-5000M
3	Remove trunk lid lock cover	The cover is a part which can be eliminated.
4	Remove hinge lever for trunk lid	The hinge levers are parts which can be eliminated
			AR88.50-P-5120M
5	Remove right and lever covers (16) in trunk
6	Remove coverings in trunk
			AR68.30-P-4600M
7	Removing threaded plate		AN88.50-P-0002-01N
8	Remove pneumatic system equipment	It is not required to loosen the pneumatic lines.
			AR80.20-P-2700M
9.1	Remove Keyless Go antenna.	It is not required to loosen the lines. with CODE (889) Keyless Go.
			AR82.62-P-8000MD
10.1	Remove Keyless Go control module
		It is not required to loosen the lines. with CODE (889) Keyless Go.	AR80.35-P-0001M
11	Remove rear seat cushion
			AR91.12-P-1020N
12	Remove rear backrest
13	Remove side wall paneling	Only right side.
			AR68.30-P-1450N
14	Remove rear SAM control module with fuse and relay box	It is not required to loosen the lines.
			AR54.21-P-1259I
15	Remove switch module of power window switch	Driver power window switch group (S20/1) is a part which can be eliminated.
			AR72.29-P-0120N
	Install
16	Install switch module of power window switch	Use new switch group of driver power window switch (S20/1) with open and close trunk lid switch (S20/1s6).
			AR72.29-P-0120N
17	Retrofit hinge lever and drive for remote trunk lid closing		AN88.50-P-0002-03N
18	Install trunk lid opening angle detection sensor
		with CODE (881b) remote trunk lid closing (RTC).	AR88.50-P-5065N
19	Insert protective cap (13) below battery frame
20	Place RTC hydraulic pump (M51) in protective cap
21	Install working cylinder (14) into drive element together with lines.	Route the hydraulic lines between fender and reinforcement. Mask sharp edges in area of lines with felt.
22	Retrofitting trunk lid remote control wiring harness		AN88.50-P-0002-02N
		Fuse assignment of rear fuse and relay box with combination functions.	GF54.15-P-1256-01IH
23	Install the PSE control module
			AR80.20-P-2700M
24	Install rear SAM control module with fuse and relay box
			AR54.21-P-1259I
25	Install side wall trim
			AR68.30-P-1450N
26	Install rear seat backrest
27	Install rear seat cushion
			AR91.12-P-1020N
28.1	Install keyless go control module
		with CODE (889) Keyless Go.	AR80.35-P-0001M
29.1	Install Keyless Go right antenna
		with CODE (889) Keyless Go.	AR82.62-P-8000MD
30	Clip cover for hydraulic pump into battery frame
31	Install right and left cover (16) in trunk
32	Clip in gas pressure struts (17) on left and right hinges
33	Clip in stop protection caps (18)
34	Clip in caps (19)
35	Install trunk lid	Use new cover with RTC.
			AR88.50-P-5000M
36	Connect RTC [HDFS] button (S62/26) with plug tied back and clip into new cover
37	Install battery
			AR54.10-P-0005I
38	Coat screws with paint in visible area
	Inspect
39	Perform control module adaptation (PSE) and synchronization for trunk lid remote control system with STAR DIAGNOSIS	In function group "Synchronize" Open trunk lid (synchronization at top), press switch in trunk lid, trunk closes (synchronization at bottom).
40	Perform function check
41	When modifying the scope of equipment enter code and designation of corresponding special equipment on vehicle data card and FDOK	Remote trunk lid closing (RTC) code 881b.
