Retrofitting pennant holder - AN88.10-P-0001M
MODEL 220
| Removal | |||
| 1 | Remove headlamp | ||
| AR82.10-P-4730M | |||
| Installation | |||
| 2 | Mask area of hole on front fender with adhesive tape | ||

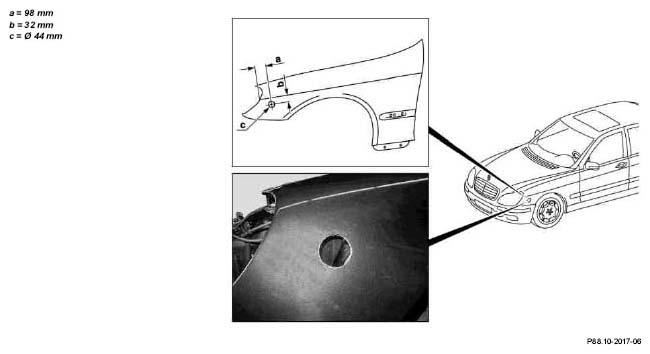

| 3 | Mark hole c on adhesive tape and drill with 44 mm dia. bit Dimension a = 98 mm, b = 32 mm (see figure) |
||
| 4 | Deburr hole and apply corrosion protection agent | ||

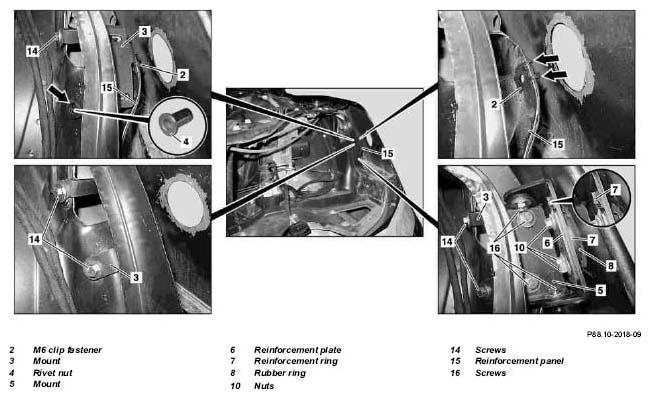

| 5 | Install M6 clip nut (2) in hole on reinforcement panel (15) of body (see arrows) | ||
| 6 | Position mount (3) and tighten provisionally with screws (14) at top as well as on the M6 clip nut (2) | ||
| 7 | Drill hole for pop rivet nut in bottom mount (3) (see arrow) | ||
| 8 | Remove mount (3) and press rivet nut (4) into hole | ||
| 9 | Install mount (3) and loosely tighten with screws (14, 3 each) | ||

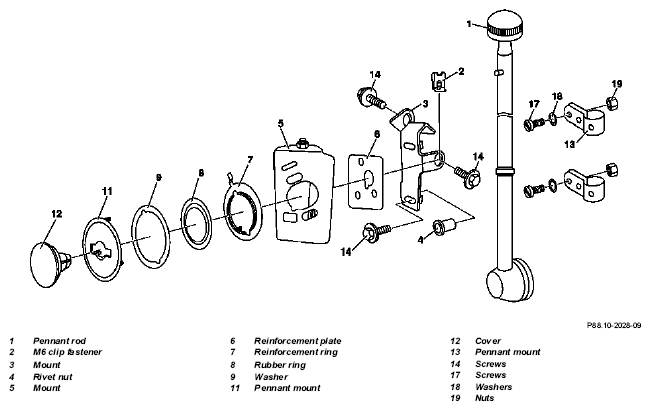

| 10 | Loosely fasten mount (5) with reinforcement ring (7) and rubber ring (8) to mount (3) (16 screws) | ||
| 11 | Install pennant mount (11) into hole (dia. 44 mm) from outside on fender with washer (9) and tighten to mount (5) with nuts (10, 3 each) and reinforcement plate (6). | ||
| 12 | Grease pennant mount | ||
| 13 | Tighten mount (3) on reinforcement plate (15) without tension with three screws. | ||
| 14 | Tighten mount (5) on mount (3) without tension with screws (16) | ||
| 15 | Align pennant mount (11) and tighten with nuts (10, 3 each) | *BA88.10-P-1001-01B | |

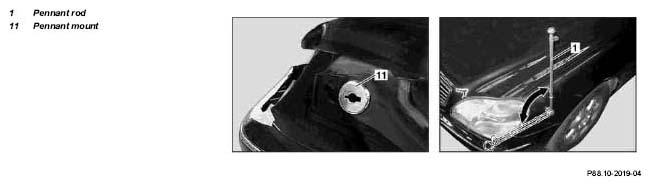

| 16 | Insert pennant rod (1) into pennant mount (11) and catch | ||
| 17 | Tighten pennant mounts (13) with screws (17), washers (18) and nuts (19) | ||
| 18 | Install headlamp | ||
| AR82.10-P-4730M |
| Number | Designation | Model 220 | |
|---|---|---|---|
| BA88.10-P-1001-01B | Nut for pennant mount | Nm | 5 |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| A 220 810 01 81 | Parts kit for pennant holder, left | 1 |
| A 220 810 00 81 | Parts kit for pennant holder, right | 1 |
| A 220 810 00 84 | Pennant rod | 2 |
