Retrofit trunk lid auxiliary lock - AN88.50-P-0001N

MODEL 215

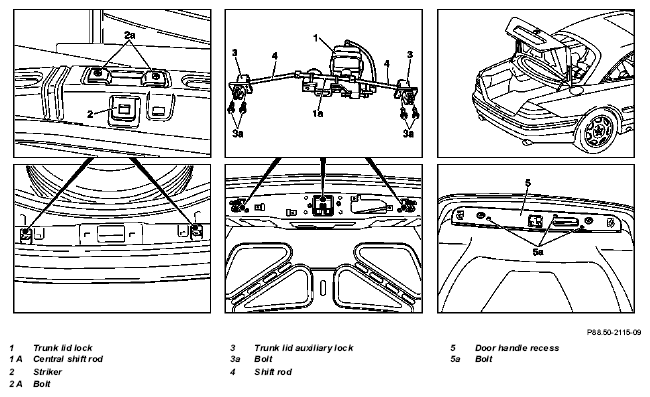

Fig 1: Identifying Trunk Lid Auxiliary Lock With Associated Components
G04850343
REMOVING Remove
1 Remove trunk lid lock (1) IMPORTANT Remove only trunk lid lock Trunk lid lock and door handle recess are eliminated
REFER TO TESTING & REPAIR     AR88.50-P-5020M
2 Remove paneling from rear center section IMPORTANT Part eliminated.
REFER TO TESTING & REPAIR     AR68.30-P-4600M
INSTALLING Install
3 Install trunk lid lock (1) with central shift rod (1a) IMPORTANT Position trunk lid lock on bottom edge of recess in trunk lid
REFER TO TESTING & REPAIR     AR88.50-P-5020M
    TORQUE SPECIFICATION Bolt on trunk lid lock *BA88.50-P-1002-01A
    TORQUE SPECIFICATION Bolt on striker eye *BA88.50-P-1004-01A
    TORQUE SPECIFICATION Bolt for locking lug on trunk lid *BA88.50-P-1006-01A
4 Retrofit trunk lid auxiliary lock
REFER TO TESTING & REPAIR     AR88.50-P-5020-01N
5 Install paneling on rear center section IMPORTANT New part
REFER TO TESTING & REPAIR     AR68.30-P-4600M
6 Reassemble trunk lid
7 Fasten door handle recess (5) with bolts (5a)
  Adjust
8 Adjust height of striker (3) for the trunk lid auxiliary locks (3) so that edges of trunk lid (2) and the fender are flush and the trunk lid can be closed easily.
  Check
9 Check for trunk lid fit in relation to rear fenders IMPORTANT Observe gaps
If fit is not precise: ↓
REFER TO TESTING & REPAIR   Adjust trunk lid AR88.50-P-5200M
10 Check closing system for proper function IMPORTANT When the trunk lid is open, unlock locked trunk lid locks by actuating the pushbutton or the remote trunk release
11 When modifying the package, subsequently enter code or designation of corresponding special equipment on vehicle data card and FDOK
TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS

Number Designation Model 215
BE60.00-P-1003-01A Gap dimension Trunk lid to top of rear fender Dimension "F" mm 4.0 (± 0.5)
Trunk lid to bottom of rear fender Dimension "M" mm -
Trunk lid to rear fender Dimension "F" mm 4.0 (± 0 .5)
Trunk lid to taillamp Dimension "M" mm 4.0 (± 1 .2)
Trunk lid to bumper Dimension "V" mm -
Rear fender to taillamp Dimension "U" mm -
Fig., see   AR60.00-P-0700-01N
TORQUE SPECIFICATION TRUNK LID

Number Designation Model 215
BA88.50-P-1002-01A Bolt on trunk lid lock Nm 9
BA88.50-P-1004-01A Bolt to striker eye Nm 9
BA88.50-P-1006-01A Bolt, locking lug to trunk lid Nm 9
PARTS ORDERING NOTES

Part no. Designation Quantity
Group 69 Cargo space edge cover 1
Group 75 Trunk lid lock (according to equipment) 1
Group 75 Trunk lid auxiliary lock with individual parts 2
Group 75 Door handle recess 1
