Removing and installing fuel filler flap - AR80.20-P-2300M

MODEL 215, 220

Illustrated on model 220

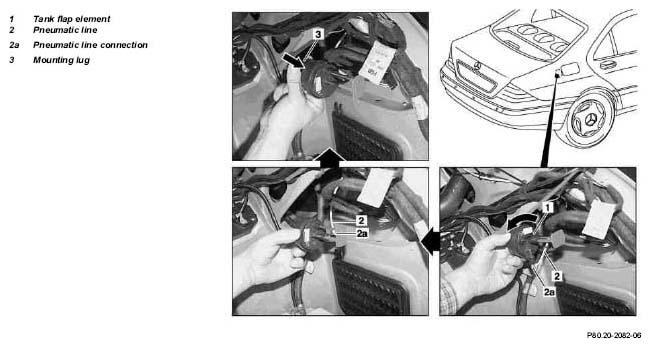

Fig 1: Identifying Fuel Filler Flap Remove/Install Components - Illustrated On Model 220

	Removal, installation
1	Remove paneling in trunk	Right side paneling	AR68.30-P-4600M
2	Turn tank flap element (1) to left (direction of arrow) until pneumatic line connection (2a) makes contact with body	Removal is described with the tank flap element (1) already removed
3	Press mounting lug (3) (arrow) and pull tank flap element (1) off of holder	Installation:  The tank flap element (1) can only be installed in one position. Slide tank flap element into holder until mounting lug (3) catches audibly
4	Remove tank flap element (1) toward trunk
5	Carefully pry pneumatic line (2) off with open-end wrench (7 mm)	Danger of breaking insert profile
6	Check pneumatic function of tank flap element (1)
7	Install in opposite order
