Installing instrument - AZ54.65-P-0001-05K

Models 220.0/1

  1. Mark the center point of the mounting hole for the display instrument on the removed trim of the right C-pillar as per the diagram.

    IMPORTANT The center line of the seat belt slot serves as a reference line for the dimensioning.

  2. Make a 30 mm dia. mounting hole at the marked drilling point and clip the display instrument (1) into the trim.
  3. When attaching the trim route the display instrument connection cable downwards.
  4. Route the connection cable backwards from the C-pillar into the trunk to the control module installation point.

    IMPORTANT Tie connection cable to existing cables or wiring looms. Pay attention to chafe-free routing and attach chafe protection if necessary.

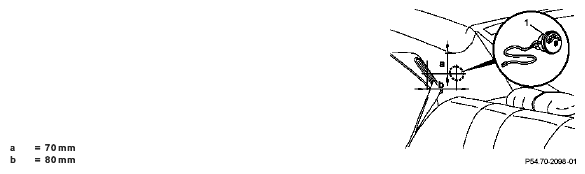

    Fig 1: Identifying Display Instrument With a And b Dimension
    G04849775
