Rim designation - GF40.10-P-1010-01A

Fig 1: Identifying Rim Measurements
G04607098
Fig 2: Identifying Rim Diameter
G04607099

Sheet-steel disk wheel

Fig 3: Identifying Sheet-Steel Disk Wheel Parts
G04607100

Light alloy disk wheel

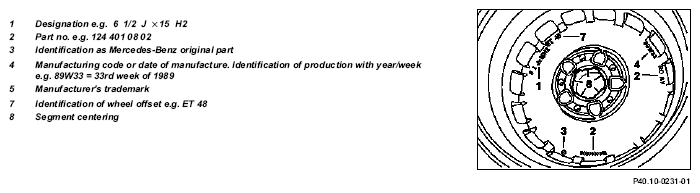

Fig 4: Identifying Light Alloy Disk Wheel Parts
G04607101
