Remove/install ETS/ASR/ESP hydraulic unit - AR42.40-P-0816I

Models 215, 220

Connections on hydraulic unit A7/3:

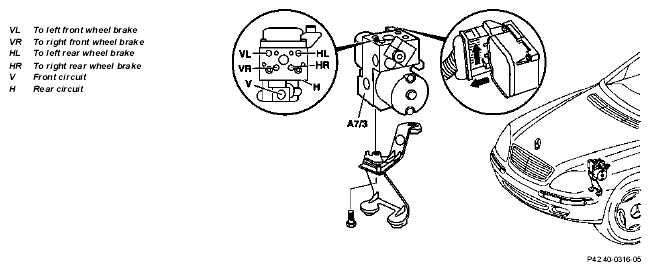

Fig 1: Identifying ETS/ASR/ESP Hydraulic Unit Remove/Install Components

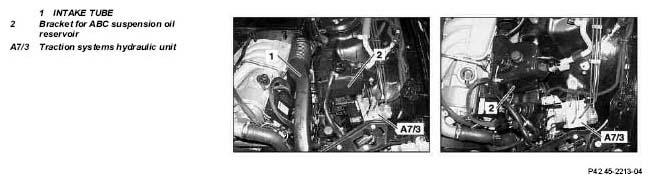

Fig 2: Identifying ABC Suspension Oil Reservoir And Traction Systems Hydraulic Unit

	Remove/install
	Risk of poisoning  from tasting brake fluid. Injury hazard  due to skin and eye contact with brake fluid	Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on handling brake fluid		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Ignition OFF
1	Detach intake pipe (1).	Only remove intake pipe on the left.
2	Swivel ABC suspension oil reservoir to the side (see diagram)	To do this, loosen three nuts at bracket for ABC suspension oil reservoir.
3	Unscrew hydraulic lines from hydraulic unit (A7/3)	Ring wrench bit	Figure
		Ring wrench bit	Figure
		Seal off hydraulic lines and connections with plugs. Do not misconnect lines.
		Set of closure plugs	Figure
			*BA42.40-P-1001-01B
4	Unplug connector from hydraulic unit	Push bayonet lock upwards and detach plug (see arrows).
5	Removing hydraulic module	Unscrew hydraulic unit from retainer or remove complete with retainer. Unscrew mounting screws for hydraulic unit. Pull the retaining plate upwards out of the rubber mounts if necessary.
6	Install in the reverse order	Flush away with water any brake fluid which runs out.
7	Bleeding brake system	Model 215, model 220 without special protection code Z07	AR42.10-P-0010I
		Model 220 with special protection code Z07	AR42.10-P-0010MB
8	Read out fault memory
	Connect STAR DIAGNOSIS and interrogate fault memory		AD00.00-P-2000-04A
		Diagnosis system STAR DIAGNOSIS	*WH58.30-Z-1048-13A

ACCELERATION SLIP REGULATION (ASR)

Number	Designation		Model 215	Model 220
BA42.40-P-1001-01B	Brake line to ASR/ESP hydraulic unit	NM	14	14

Fig 3: Identifying Ring Wrench Bit (000 589 77 03 00)

Fig 4: Identifying Ring Wrench Bit (140 589 00 03 00)

Fig 5: Identifying Set Of Closure Plugs (129 589 00 91 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
