Removing and installing electric window lift mechanism for rear side window - AR67.39-P-4150N
MODEL 215
| Removal, installation | |||
| 1 | Remove rear side window (4) | AR67.30-P-4000N | |

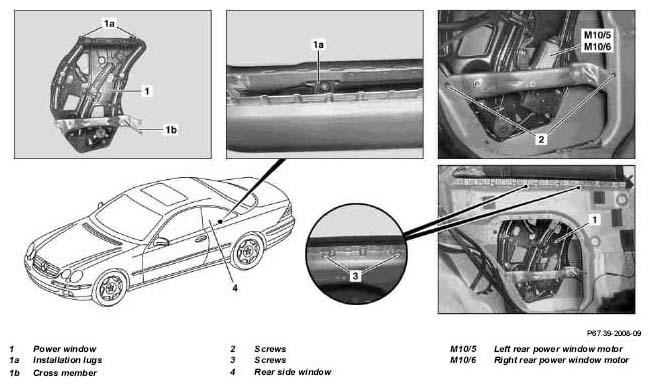

| 2 | Unscrew screws (2) from cross member (1b) | Figure | |
| 3 | Unscrew screws (3) from rear side wall | *BA67.30-P-1002-01B | |
| Figure | |||
| 4 | Unhook installation lugs (1a) from rear side wall and remove power window through installation opening in rear side wall | ||
| 5 | Install in opposite order |
| Number | Designation | Model 215 | |
|---|---|---|---|
| BA67.30-P-1002-01B | Screw for rear side power window on inner panel | Nm | 9 |
