Aligning windshield in body opening - AR67.10-P-1000-04K

TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number	Designation			Model 208	Model 215	Model 220
BE67.10-P-1001-01A	Distance between top of windshield and front edge of roof	Dimension "A"	mm	12	12	12
		See figure		AR67.10-P-1000-04K	AR67.10-P-1000-04K	AR67.10-P-1000-04K

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

1. Before applying glue position windshield on rubber windshield spacers and center (dimension "A", measured between top edge of windshield and front edge of roof).

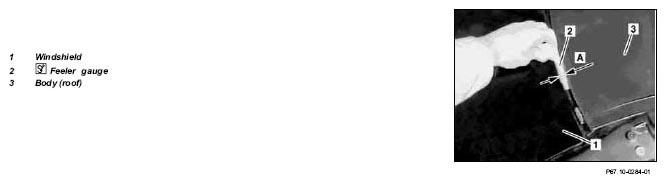

   Fig 2: Measuring Dimension Between Windshield Top Edge And Roof Front Edge


2. Attach strips of adhesive tape, cut at top edge of windshield and remove windshield.
   Fig 3: Cutting Top Edge Of Windshield
