Align rear window in body opening - AR67.20-P-2000-04N

INSPECTION AND SETTING DATA OF REAR PANEL WINDOW, REAR WINDOW

Number	Designation			Model 215
BE67.20-P-1005-01A	Distance between upper edge of shaped rubber gasket and rear edge of roof	Dimension "A"	mm	8
BE67.20-P-1005-01A		Fig. see		AR67.20-P-2000-04N

Before inserting the rear window, stick adhesive strips onto body.

Place rear window onto the body opening and center (dimension "A", measured between top edge of molded rubber seal and rear edge of roof).

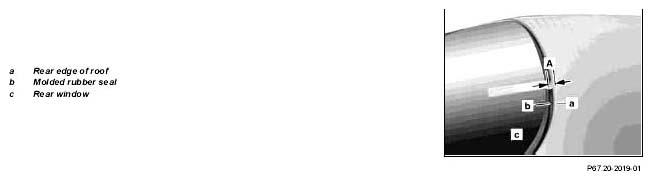

Fig 1: Identifying Dimension Of Rear Window Center
Apply pressure to adhesive strips on rear window and cut through at top edge of molded rubber seal (arrows). Remove rear window.

Fig 2: Identifying Molded Rubber Seal On Rear Window
