Remove/install trunk lid lock with trunk lid auxiliary lock - AR88.50-P-5020-01N

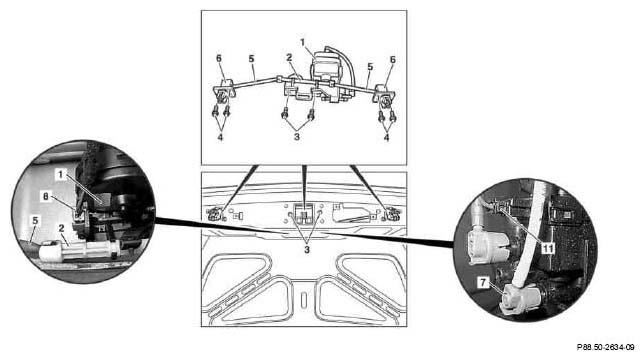

Fig 1: Identifying Remove/Install Components For Trunk Lid Lock With Trunk Lid Auxiliary Lock

Removal:

1. Disconnect electrical connectors (8, 11) from trunk lid lock (1)
2. Remove CL line (7) from trunk lid lock (1)
3. Unscrew bolts (3) and remove trunk lid lock (1) with central shift rod (2)
4. Unscrew bolts (4) and remove auxiliary locks (6) with shift rods (5)
5. Unscrew bolts (10) and remove left and right locking eye (9) from rear center section

   Installation

6. Align left and right locking eye (9) in center of recesses on rear center section and tighten with bolts (10)

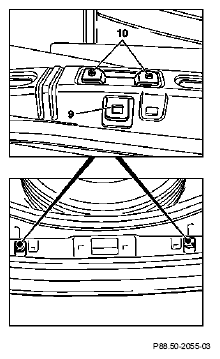

   Fig 2: Identifying Locking Eye And Bolt


   Fig 3: Identifying Remove/Install Components For Trunk Lid Lock With Trunk Lid Auxiliary Lock


7. Insert left and right auxiliary lock (6) with shift rod (5) in outer recesses on trunk lid, align in center and tighten with bolts (4)
8. Insert trunk lid lock (1) with central shift rod (2) into center recess on trunk lid and connect to shift rods (5) of auxiliary locks (6)

   Ensure that shift rods (5) engage correctly in central shift rod (2)

9. Align trunk lid lock (1) in center of recess in trunk lid and tighten bolts (3)
10. Connect pneumatic line (7) with trunk lid lock (1)
11. Connect electrical connectors (8, 11) to trunk lid lock (1)
