Remove threaded plate - AN88.50-P-0002-01N

  1. Unscrew screw (1) and remove threaded plate
  2. Carefully pry out sheet metal disc (2) with screwdriver.

    NOTES Mask surrounding area with masking tape to prevent damage.

  3. Remove sealant from cutout.
  4. Seal threaded hole (3) on right side with sealant water-tight.

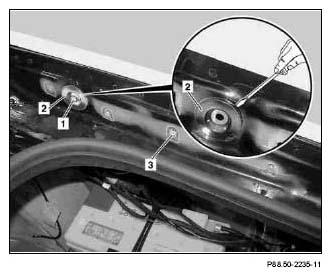

    Fig 1: Prying Sheet Metal Disc Using Screwdriver
    G04850344
  5. Seal second threaded hole (4) on left side with sealant water-tight.
    Fig 2: Identifying Second Threaded Hole
    G04850345
