Remote trunk locking (RTL) arrangement of hydraulic components - GF80.20-P-0007-01A

Models 215, 220 with code 881b (trunk lid remote control)

Shown on model 220

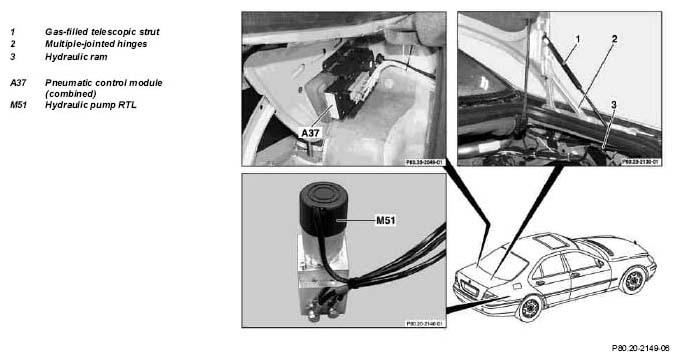

Fig 1: Identifying Remote Trunk Locking (RTL) Hydraulic Components - Shown On Model 220
G04850143
