Remove and install COMAND operating, display and control module - AR82.85-P-1000M

MODEL 220 as of 1.9.02

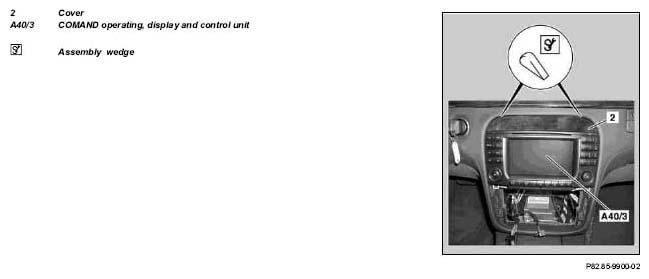

Fig 1: Identifying Cover And COMAND Operating, Display And Control Unit

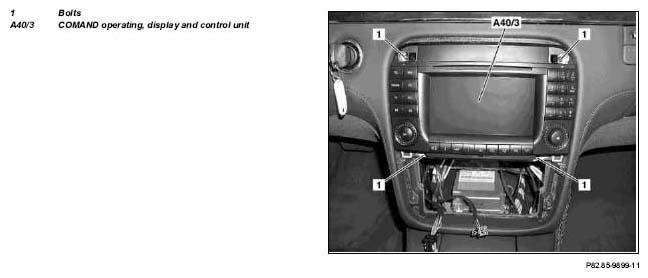

Fig 2: Identifying Bolts And COMAND Operating, Display And Control Unit

	Remove/install
	Risk of explosion  caused by explosive gas. Risk of poisoning and caustic burns  caused by swallowing battery electrolyte. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect ground cable of battery		AR54.10-P-0003I
	Notes on battery		AH54.10-P-0001-01A
	Notes on AGM battery	Model 220.028 with CODE (450) Taxi version. Models 220.070/075/175/178/875/878 as of 1.1.01.	AH54.10-P-0002-01A
2	Remove control and operating unit		AR83.40-P-6350MA
3	Unclip cover (2) from mounts on right and left with assembly wedge	Cover (2) above COMAND operating, display and control module (40/3)
		Installation wedge	Figure
4	Unscrew screws (1)
5	Pull COMAND operating, display and control module (40/3) out of center console	Until electrical connectors and fiber optic cable are accessible.
6	Disconnect fiber optic cable and electrical connectors and remove COMAND operating, display and control module (40/3)	Do not kink or stretch fiber optic cable.
7.1	Cover fiber optic cable	Only vehicles up to 31.8.03 with D2B.	AR82.95-P-0005-01A
8	Install in the reverse order
9	Read diagnostic trouble code memory and erase
	Connect STAR DIAGNOSIS, interrogate fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS system.	*WH58.30-Z-1048-13A
10	Perform function check

Fig 3: Identifying Mounting Wedge(110 589 03 59 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
