Wind noise in the area of the rear side window bar seal - AF67.30-P-1001AG

MODEL 215

Damage code	Cause	Remedy
73 230 39	Damaged bar seals can cause wind noises.	1 Remove bar seal.
		2 Check whether window radius area is filled with sealing compound (2) in area of bar seal (1). If there is no sealant, continue with step 3, or else carry out step 4.
		3 Fill radius area of window at bar seal (1) with sealant (2). Sealing cord	*BR00.45-Z-1046-01A
		4 Check bar seal (1) for damage or wear and replace bar seal if necessary. New bar seal must correspond to at least quality level 12 (labeling on rear of bar seal)
		5 Install bar seal.
		6 Check adjustment of the rear side window and correct as required. Refer to: ↓
		Adjusting rear side windows	AR67.30-P-4200N

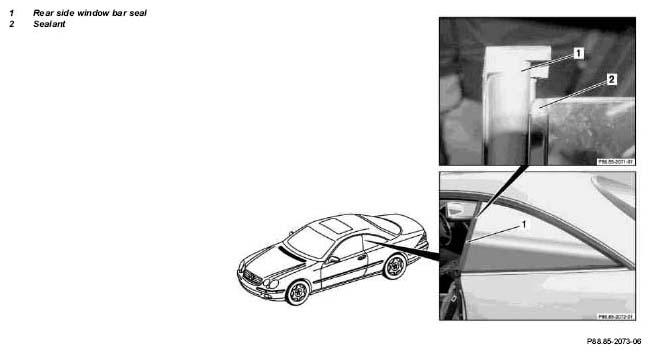

Fig 1: Identifying Rear Side Window Bar Seal

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1046-01A	Sealing cord	A 005 989 12 71 11
