Removing and installing rear side window - AR67.30-P-4000N

MODEL 215

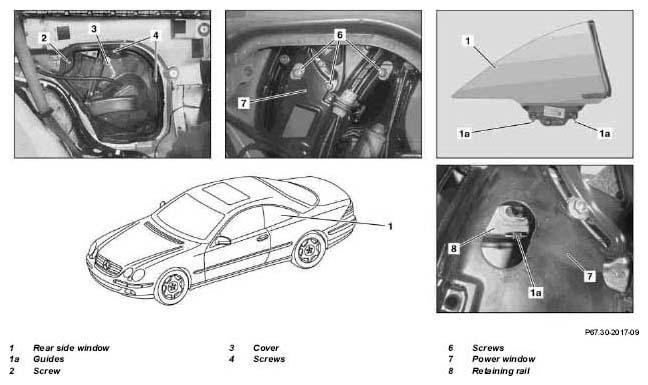

Fig 1: Identifying Rear Side Window Remove/Install Components - Model 215

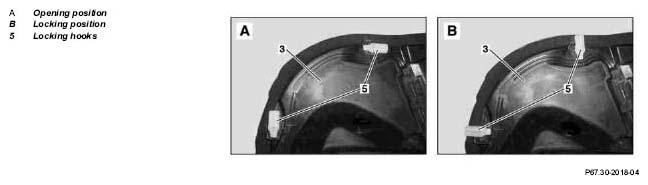

Fig 2: Identifying Locking Hooks And Locking Position

	Removal, installation
	Injury hazard  from unsecured windows pinching hands	Secure windows against falling down.	AS67.00-Z-0002-01A
1	Remove side paneling in rear
2	Unscrew screw (2) from cover (3)
3	Open locking hooks (5) and remove cover (3)	To open the locking hooks (5) turn screws (4) counterclockwise until locking hooks (5) turn to the opening position (A). Installation:  The locking hooks (5) must be in the opening position (A) and it must be possible to move them to the locking position (B) by turning the screws (4)
4	Move rear side window (1) down until screws (6) are accessible through the installation openings on the power window (7)
5	Unscrew screws (6)		Fig 3
6	Remove rear side window (3) upward	Installation:  When installing rear side window (3) ensure that the guides (1a) are inserted into the recesses in the retaining rail (8)
7	Install in opposite order	Installation:  Adjust rear side window	AR67.30-P-4200N
			Figure

Fig 3: Identifying Torx Bit Set (000 589 01 10 00)

Fig 4: Identifying Feeler Gauge (129 589 03 21 00)
