Removing and installing power window switch for rear side window - AR67.39-P-4180N

MODEL 215

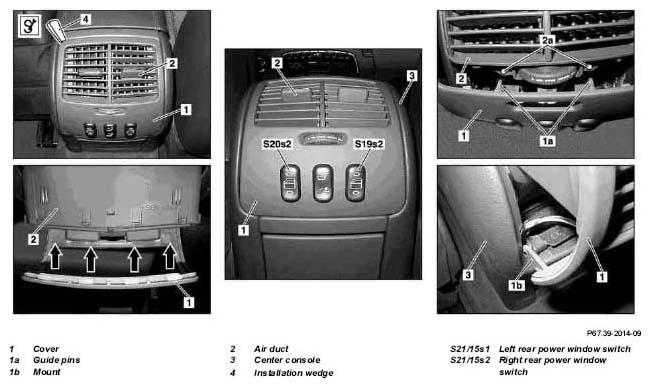

Fig 1: Identifying Power Window Switch For Rear Side Window Remove/Install Components - Model 215

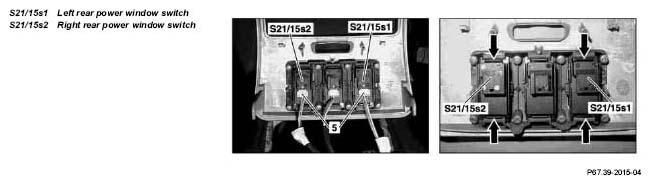

Fig 2: Identifying Left Rear Power Window Switch And Right Rear Power Window Switch

	Removal, installation
1	Unclip cover (1) from front center console (3) with installation wedge (4)
2	Lift cover (1) until mount (1b) is unhooked from center console (3) at bottom
3	Unclip air duct (2) from cover (1)	Installation:  Move guide pins (1a) into guides (2a) and clip cover (1) into air duct (2 arrows) at top
4	Disconnect connectors (5) from left/right rear power window switch (S21/15s1, S21/15s2)
5	Unclip left/right rear power window switch (S21/15s1, S21/15s2) from cover (1) with suitable tool (arrows)
6	Install in opposite order

Fig 3: Identifying Installation Wedge (110 589 03 59 00)
