Removing and installing motor for power window control for rear side window - AR67.39-P-4160N

MODEL 215

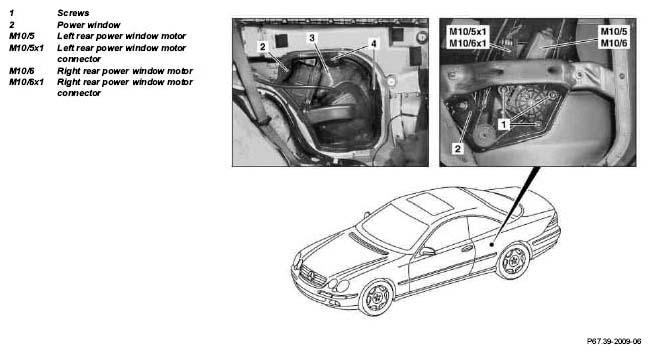

Fig 1: Identifying Motor For Power Window Control For Rear Side Window - Model 215

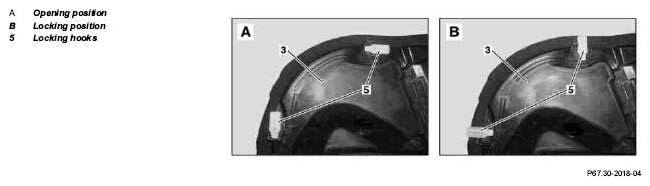

Fig 2: Identifying Locking Hooks And Locking Position

	Removal, installation
1	Remove side paneling in rear
2	Unscrew screw (2) from cover (3)
3	Open locking hooks (5) and remove cover (3)	To open the locking hooks (5) turn screws (4) counterclockwise until locking hooks (5) turn to the opening position (A). Installation:  The locking hooks (5) must be in the opening position (A) and it must be possible to move them to the locking position (B) by turning the screws (4)
4	Disconnect left/right rear power window motor connector (M10/5x1; M10/6x1) for rear left/right power window motor (M10/5; M10/6)
5	Unscrew screws (1)	Protect motor against falling
			*BA67.39-P-1001-01A
			Figure
			Fig 3
6	Remove left/right rear power window motor (M10/5; M10/6) from power window (2)	Installation:  Coat gear on motor with Isoflex Topas L 32	*BR00.45-Z-1012-06A
7	Install in opposite order

POWER WINDOWS

Number	Designation		Model 215
BA67.39-P-1001-01A	Screw for power window motor of rear side window	Nm	4.5

Fig 3: Identifying Torque Wrench (000 589 67 21 00)

Fig 4: Identifying Torx Bit Set (000 589 01 10 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1012-06A	Lock cylinder grease spray 50 ml	A 002 989 06 51
