Removing / Installing rear side window seal - AR67.30-P-0001M

MODEL 215

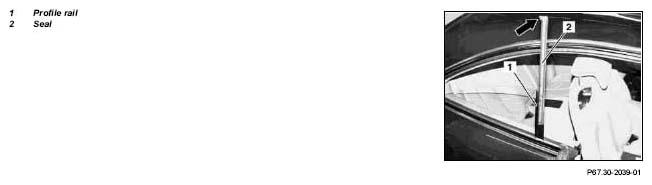

Fig 1: Locating Rear Side Window Seal Remove/Install Components - Model 215

	Removal
1	Move rear side window down approx. 100 mm
2	Pull seal (2) up and out of the profile rail (1)
	Installation
3	Coat inside of seal (2) with slip fluid		*BR00.45-Z-1010-06A
4	Fit seal (2) on to the profile rail (1) and slide down	Ensure correct seating of seal corner (2) (arrow).
5	Close rear side window

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Antifriction agent	A 000 989 03 67
