Align windshield in body opening - AR67.10-P-1000-04MB
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1060-02A | Window installation repair kit | 126 670 01 93 |

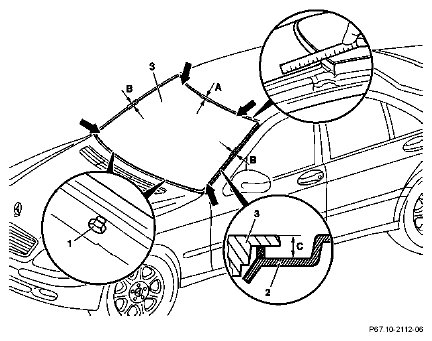

Illustrated with code (Z07) maximum protection
- Check dimensions (A, B, C).
Reference values:
- Dimension (A) approx. 15 mm.
(with code (Z07) Maximum protection with screws (1), adjustable)
- Dimension (B) approx. 20 mm.
- Dimension (C) approx. 10 - 14 mm all the way around.
Observe transition to roof.
- Dimension (A) approx. 15 mm.
- Lift windshield (3) and glue appropriate rubber spacers to body flange (2) (arrows).
- Install windshield (3) and check dimensions (A, B, C) again, if necessary correct again.
