Cutting out windshield with cutting blades - AR67.10-P-1000-01M

Clamp/unclamp blade only with air supply shut off. Wear protective gloves and goggles

Fig 1: Identifying Cutting Blade (124 589 02 63 00)

Fig 2: Identifying Cutting Blade (124 589 21 63 00)

1. Clamp blade 124 589 02 63 00 in multicutter.
2. Moisten whetstone and sharpen blade on both sides with machine switched on.
3. Cut out windshield in area "A" from outside.
4. Clamp blade 124 589 21 63 00 in multicutter.
5. Moisten whetstone and sharpen blade on both sides with machine switched on.
6. Cut out windshield in area "B" from outside.

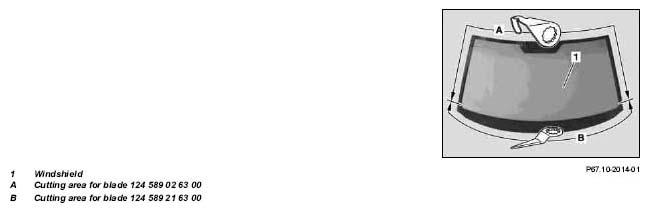

   Fig 3: Identifying Cut Out Windshield Area From Outside

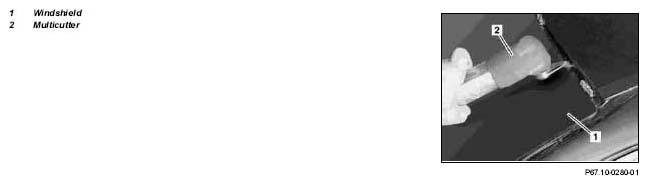

   Fig 4: Identifying Windshield And Multi-Cutter
