Remove/install rear window ornamental frame - AR67.20-P-2200M: Notes

MODEL 220

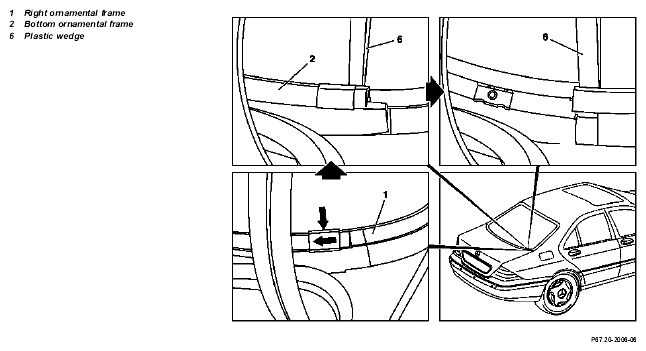

Fig 1: Identifying Rear Window Ornamental Frame Remove/Install Components - Model 220

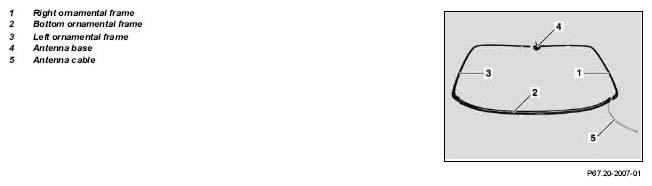

Fig 2: Identifying Right Ornamental Frame, Antenna Base And Antenna Cable

	Remove/Install
1	Open trunk lid
2	Remove antenna		AR82.70-P-8951I
3	Push covers (arrows) at bottom left and right to side with plastic wedge (6)		Figure
4	Press ornamental frame (2) out of clips at bottom with plastic wedge (6)		Figure
5	Press ornamental frame (1) out of clips with plastic wedge (6)		Figure
6	Press ornamental frame (3) out of clips with plastic wedge (6)		Figure
7	Install in the reverse order

Fig 3: Identifying Long Wedge (115 589 03 59 00)
