Install clamps for rear window molding - AR67.20-P-2200-02MB
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1007-02A | Adhesives | A 005 989 61 71 |

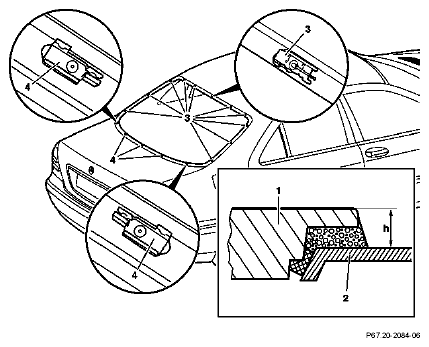

- Measure and note down height (h) between flange (2) and rear window (1) at appropriate rivet point.
- Insert clamps (3, 4) with rivets.
Observe position of clamps (3, 4).
Install rivets with sealant Shim clamps (3, 4) with washers according to height (h) measured
Height (h) Window thickness 17 to 19 mm - 20 mm 1 mm
- Rivet clips (3, 4).
Do not cant rivet tool, otherwise rear window (1) can be damaged.
