Apply glue to rear window - AR67.20-P-2000-08MB
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-20A | Electric cartridge gun |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1015-02A | Repair kit | A 220 670 00 93 |

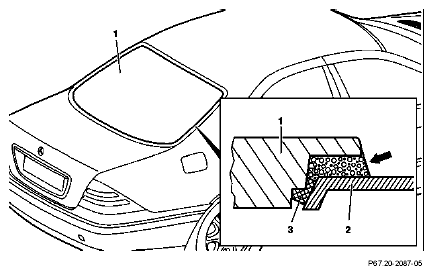

Illustrated for code (Z07) maximum protection
- Fill gap between rear window (1) and body flange (2) with sealant all the way around (arrow).
If necessary slightly press back butyl cord
(3).
- Spread sealant (arrow).
