Align rear window in the body opening - AR67.20-P-2000-04MB
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1060-02A | Window installation repair kit | 126 670 01 93 |
Illustrated with code (Z07) maximum protection

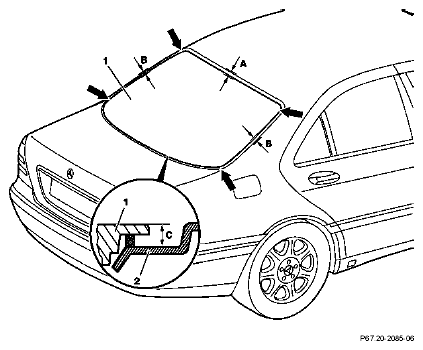

- Check dimensions (A, B, C). Observe transition to roof.
Reference values:
- Dimension (A) approx. 20 to 22 mm
- Dimension (B) approx. 25 mm
- Dimension (C) approx. 18 to 20 mm
all the way around
Observe transition to roof.
- Lift rear window (1) and glue appropriate rubber spacers to body flange (2) (arrows).
- Insert rear window (1) and check dimensions (A, B, C) again, correct again if necessary.
