Adjusting rear side windows - AR67.30-P-4200N

MODEL 215

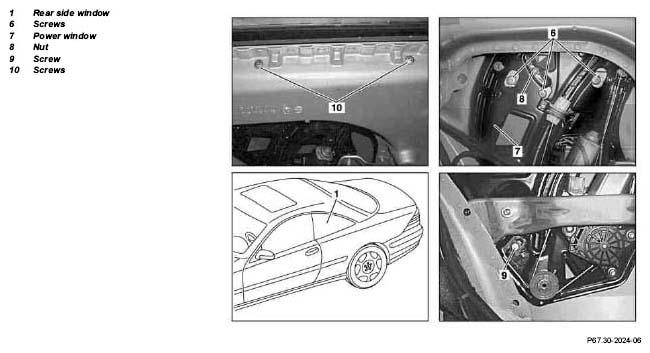

Fig 1: Identifying Rear Side Windows Components - Model 215

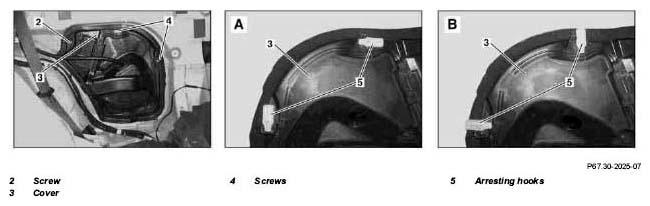

Fig 2: Identifying Arresting Hooks, Screw And Cover

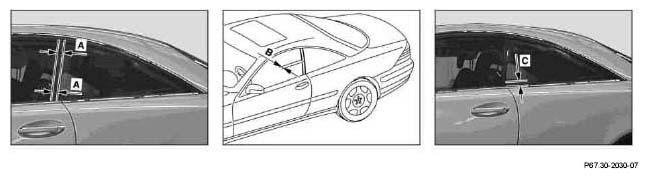

Fig 3: Identifying Rear Side Windows Gap

MODIFICATION NOTES

22.3.01

Value changed from 7...9 mm to 6...8

Value in row BE67.30-P-1001-01N changed for model 215

*BE67.30-P-1001-01N

	Removing, installing
1	Remove side wall paneling in rear		AR68.30-P-1450N
2	Unscrew screw (2) from cover (3)	Installation: Check cover (3) for leakage, if necessary seal with suitable sealant.
		Sealing cord	*BR00.45-Z-1046-01A
3	Open arresting hooks (5) and remove cover (3)	To open arresting hooks (5) turn screws (4) counterclockwise until the arresting hooks (5) turn to the open position (Fig. A). Installation: The arresting hooks (5) must be located in the open position (Fig. A) and it must be possible to move them to the close position by turning the screws (4) (Fig. B).
	Adjustment in longitudinal direction
4	Check window inclination and position of rear side window (1) in longitudinal direction and correct if required; for this purpose, close rear side window (1) up to 20 mm below sealing frame
5	Roll rear side window (1) down until screws (6) are accessible through installation openings on window lift mechanism (7)
6	Loosen screws (6)		*BA67.30-P-1001-01B
			Figure
		After loosening screws (6) it is possible to correct the inclination and gap "A" in relation to the crank widow in the front door.	*BE67.30-P-1001-01N
	Height adjustment
7	Loosen nut (8) and push upward in slot on window lift mechanism (7) to move the rear side window (1) down or slide downward to move the rear side window (1) up	The top edge of the glass of the rear side window (1) should plunge completely below the rubber lip of the sealing frame (arrows).
8	Loosen screw (9) and adjust dimension "C" above bottom stop		*BE67.30-P-1003-01N
9	Check protrusion of window in front door in relation to rear door window	Loosen screws (10) and adjust dimension "B" by moving window lift mechanism (7).	*BE67.30-P-1002-01N
			*BA67.30-P-1002-01B
10	Install in the reverse order
11	Check rear side window (1) for leakage and easy motion and repeat adjustment operation if required

SIDE WINDOWS

Number	Designation		Model 215
BA67.30-P-1001-01B	Screw for rear side widow on window lift mechanism	Nm	9
BA67.30-P-1002-01B	Screw for power window lift mechanism of rear side window on inner plate	Nm	9

TEST VALUES FOR REAR SIDE WINDOW

Number	Designation			Model 215
BE67.30-P-1001-01N	Gap between edge of glass on crank window and rear side window	Dimension" A"	mm	6...8
BE67.30-P-1001-01N		Fig. see		-
BE67.30-P-1002-01N	Protrusion of window in front door in relation to rear side window	Dimension "B"	mm	0...1
BE67.30-P-1002-01N		Fig. see		-
BE67.30-P-1003-01N	Protrusion of window stay in relation to outer rear sealing rail	Dimension "C"	mm	0...1
BE67.30-P-1003-01N		Fig. see		-

Fig 4: Identifying Torx Bit Set (000 589 01 10 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1046-01A	Sealing cord	A 005 989 12 71 11
