Windshield defroster switch, location/purpose - GF67.10-P-2100MB
MODEL 220.175 / 178 with CODE (979) Special protection version with windshield defroster

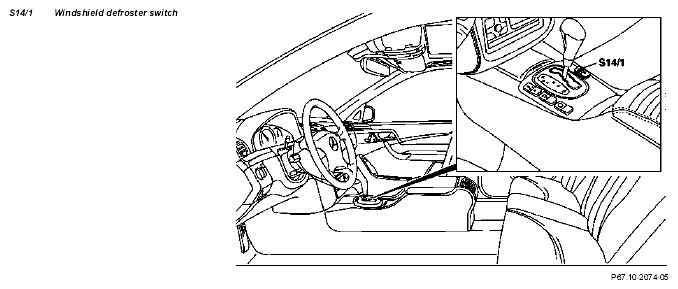

| Windshield defroster switch, location | The windshield defroster switch (S14/1) is located on the right next to the selector lever. | ||
| Windshield defroster switch, purpose | Transmit switch-on and switch-off signal to special vehicle multifunction control module (SVMCM) Displaying operating state with LED: LED on: System on LED off: System off LED flashes: Undervoltage |
