Retrofit mobile CTEL base holder - AN82.70-P-0003-05N

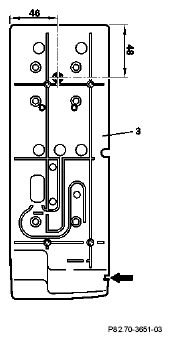

  1. Mark holes for receiver mounting as shown in drawing and bore to a Ø of 4.5 mm.

    IMPORTANT Use new receiver mounting as a template and ensure that there is sufficient space for the forward-moving sliding lock.

  2. Make a passage for the spiral-type cable (arrow) in the bottom corner of the adapter plate (3).

    IMPORTANT The spiral-type cable must not get jammed or be too loose.

    Fig 1: Identifying Adapter Plate
    G04852692
  3. Bolt on the base plate (4) using 3 commercial M4 screws and nuts to the adapter plate (3) and insert the CTEL handset into place.
  4. Insert the spiral-type cable with approx. 2 turnings into the groove provided (arrow).
  5. Contact the handset transmitter and receiver connector (X39/5).
    Fig 2: Identifying Base Plate And Adapter Plate
    G04852693
